Indirect Heat Exchanger Tank DHW80 w/ Convoluted Coil (Wave Coil)

Indirect Domestic Water Heating Tank: 2205 Duplex Stainless Steel (Inner Tank & Coil) with SUS 304 Stainless Outer Tank.

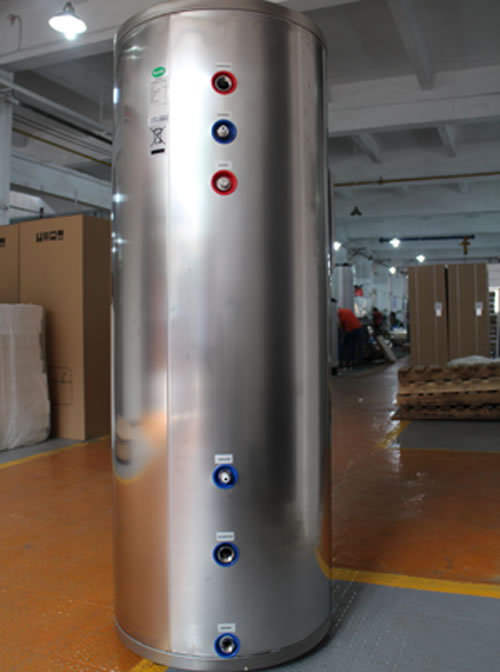

Below shows an image from our tank manufacturing facility showing the DHW80 indirect (or solar) hot water tank.

Shows (from top) hot water outlet, sensor well, magnesium anode, wiring grommet, cold water inlet.

Picture of stainless steel indirect tank / solar tank
2205 Stainless Indirect Coil Tank

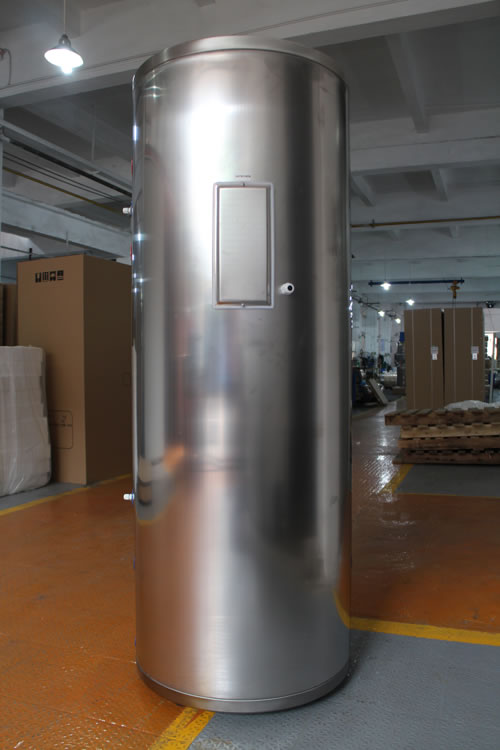

Below shows an image from our tank manufacturing facility showing DHW80 domestic hot water tank, shows cover of thermostat/element cavity and wire grommet.

picture side view stainless steel indirect water tank for boiler, heat pump, or solar thermal

More info on Chiltrix indirect water heating tanks

See Chiltrix tank manual

See DHW80 spec sheet

The Chiltrix inner tank and convoluted coil are made from ultra-high grade 2205 DUPLEX stainless steel.

Duplex stainless steel stronger, and has much better resistance to corrosion or water problems when compared to standard stainless steel tank made from 316L or 304 stainless.

Below: Picture of DHW80 shows coil inlet and outlet.

picture of coil side of DHW80 all stainless solar or indirect domestic hot water tank
