Hydronic High Wall & Cassette Fan Coil Units

Mini-Split Type & Ceiling Cassette Water FCU Fan Coils

This page is for ceiling cassettes and high-wall mini-split-type hydronic (water) fan coil units for use with chillers, boilers, or air-to-water heat pumps, applicable to cooling and/or heating applications. Go here for Low-Wall Ductless Room Water Fan Coil Units   Go here for Central Ducted AHU Hydronic Air Handlers Go here for "mini-duct" small short-duct horizontal water coil air handlers.


Quiet and Energy Efficient
Less Noise Than a Library

High Wall Capacity Range (Cooling)
3,560 BTU to 20,200 BTU

Ceiling Cassette Capacity Range (Cooling)
3,170 BTU to 12,700

High Wall & Cassette Capacity Range For Heating
Variable According to Water Supply Temperature

UL 60335-1 / UL 60335-2-40 / CSA 22.2

See spec sheet.

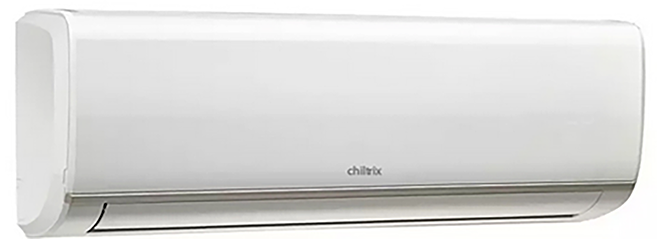

Chiltrix high wall water fan coils have the typical "mini-split" look. High wall and cassette units provide nearly silent, strong air flow with high efficiency cooling and heating.

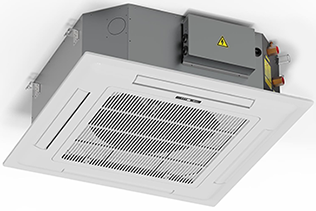

 Ceiling casettes are a perfect fit for a standard 24"*24" drop ceilings and can be installed in joisted ceilings with 24" on-center or 16" on-center joists. See manual for details
Extremely Quiet See Sound Information High Energy Efficiency
Quiet Blade Design & Low Noise Bearings Easy Access For Filter Maintenance
Wireless, Wall Mount Wired Controller Option Cassettes Include Condensate Pump
Modbus/RS485 Compatible & WiFi Options Symphony Compatible (ΔT Controlled Valve)

We Offer Three Sizes of High Wall Fan Coil Units / Two Sizes of Ceiling Cassette Fan Coil Units
Model Speed Capacity HW98 HW130 HW220 CC68 CC120
EAT dB 80F / wB 67F Total H BTU/h 9,000 12,400 20,200 6,300 12,700
Sensible BTU/h 6,300 9,500 14,300 4,500 9,300
Total M BTU/h 7,300 9,940 16,240 5,400 11,320
Sensible BTU/h 5,000 7,280 11,090 3,660 7,840
Total L BTU/h 5,090 7,760 11,800 4,440 9,680
Sensible BTU/h 3,420 5,340 7,820 3,040 6,700
EAT dB 75F / wB 63F Total H BTU/h 6,300 8,700 14,100 4,500 9,100
Sensible BTU/h 5,200 7,800 11,710 3,600 7,600
Total M BTU/h 5,100 7,000 11,400 3,900 8,100
Sensible BTU/h 4,100 6,000 9,100 3,000 6,400
Total L BTU/h 3,560 5,440 8,260 3,170 6,920
Sensible BTU/h 2,800 4,380 6,410 2,480 5,460
Heating Capacity1 H BTU/h 7,199 10,236 17,811 5,868 9,553
M BTU/h 5,903 8,394 14,605 4,812 7,833
L BTU/h 4,664 6,631 11,538 3,801 6,188
Heating Capacity2 H BTU/h 9,895 13,648 24,908 7,813 12,760
M BTU/h 8,018 10,918 19,960 6,407 10,463
L BTU/h 5,596 8,530 15,013 4,485 7,324
Heating Capacity3 H BTU/h 15,695 21,837 39,920 10,577 20,130
M BTU/h 12,829 17,469 32,073 8,567 16,305
L BTU/h 8,939 13,648 23,884 5,997 11,414
Cooling @W45°F Heating @ (1) A 70°F W104°F Heating (2) A70°F W 113°F Heating (3) A70°F W140°F


See Specification Sheet For High Wall & Cassette Water Fan Coil Units (Hydronic Fan Coil Units)

See IOM High Wall & Cassette Installation Manual



Model HW98 HW130 HW220 CC68 CC120
 Dimensions L×H×D Inches 33.5×11.5×8 38.25×11.9×8.8 42.6×12.9×9.75 23.2x23.2x9.52 23.2x23.2x9.52
Unit Weight Lbs. 24.26 31.97 39.69 37 40
Panel Dimensions   LxWxH   n/a n/a n/a 25.6x25.6x1.58 25.6x25.6x1.58
Panel  Weight   Lbs.   n/a n/a n/a 5 5

PLEASE CONTACT CHILTRIX FOR MORE INFO, DESIGN, SIZING, OR PRICING INFORMATION
Contact Us









High Wall Fan Coil & Cassette Units For Air To Water Heat Pumps



Home. office or residential small chiller heat pump air conditioner
AHRI certified chiller mark 550/590

Chiltrix World's Record Holding Air To Water Heat Pumps are Rated and Certified in Accordance with AHRI 550/590


Chiltrix High Wall & Ceiling Cassette Fan Coil Units are Rated and Certified In Accordance with AHRI 440.


See AHRI 440 Certificates:
High Wall Units
HW98 AHRI Certificate
HW130 AHRI Certificate
HW220 AHRI Certificate

Ceiling Cassette Units:
CC68 AHRI certificate
CC120 AHRI Certificate


Note, Chiltrix has additional models of high wall and ceiling cassette fan coil units that are AHRI certified, but not produced for USA stock and are available for large orders/projects.
