Fan Coil Units For Chiller Air Conditioner & Hydronic Heating & Cooling

Ultra-Slim 5.1" Ceiling Mount DC-Inverter Fan Coil Units.

Ultra High Efficiency Fan Coil Units w/ DC Inverter Fan Motors

DC-Inverter fan motors run more efficiently and use less power than regular fan motors. Additionally, they are far quieter than a standard fan unit, you can hardly hear them running. And using a hermetically sealed fan motor means years of trouble free service because dust, salts, acids, and moisture cannot get inside. Did we mention more efficient? DC-Inverter fan motors use up to 75% less electricity to do the same job. Chiltrix Ultra-Slim DC-Inverter CXI FCUs are 110-130V 60Hz.

Chiltrix DC Inverter Fan Coil Units

Chiltrix Cooling Heating Water Pressure Air CFM dB dB Power Power Net Shipping
Model BTU BTU GPM Drop PSI Volume High  Low Watts
Supply Dimensions Inches Dimensions Inches
CXI120 11,877 9,727 2.4 4.05 340 39 28 22 115v 50/60Hz 51.2W x 5.1D x 26.4H 52.8W x 7,1D x 28.7H
CXI85 8,498 8,079 1.8 3.98 270 37 28 21 115v 50/60Hz 43.3W x 51.D x 26.4H 44.9W x 7.1D x 28.7H
CXI65 6,451 5,666 1.6 1.89 188 32 27 18 115v 50/60Hz 35.4W x 5.1D x 26.4H 37.0W x 7.1D x 28.7H
CXI34 3,379 3,347 1.2 1.57 94 30 24 14 115v 60Hz 27.6W x 5.1D x 26.4H 29.1W x 7.1D x 28.7H
HW72 7,200 8,640 1.9 3.62 512 46 35 40 220 50/60Hz 31W x 9D x  11H 36W x 15D x 11H
Ducted Hydronic Air Handlers
VMB 8 18,600 21,600 4.5 1.65 800 NA NA 547 120v 50/60 Hz 20W x 21Dx40 NA/TBD
VMB 12 27,900 32,200 6.7 1..86 1200 NA NA 832 120v 50/60 Hz 23W x 20Dx42 NA/TBD
VMB 16 39,100 44,400 9.25 2.25 1600 NA NA 1197 120v 50/60 Hz 28W x 21.25Dx48 NA/TBD
VMB 20 43,100 49,500 10.31 2.65 1825 NA NA 1311 120v /50/60 Hz 28W x 21.25Dx48 NA/TBD
*Note VMB units require a 0-10v thermostat such as Honeywell T7350D, TB7980B1005, etc.
*CXI values listed are at maximum and vary based on configuration, please refer to FCU capacity test data or contact us for more details. HW72 is rated at 54F EWT. CXI-148 is a Special Order Item Call to confirm availability.

Internal water volumes of CXI: CXI-34=1.03L ,CXI-65=1.94L, CXI-85=2.86L, CXI-120=3.79L

See Ductless Fan Coil Specifications Sheet       See Ducted Hydronic Air Handler Specifications Sheet

The Chiltrix CXI-series FCUs are the thinnest and quietest ductless chiller fan coil units available. They also use far less electricity to operate than any standard fan coil unit. The HW series is a standard high wall design of standard efficiency. The Chiltrix CX-series chiller heat pump units can work with nearly any brand of fan coil unit, ducted or ductless, as well as hydronic in-floor systems.

Central Ducted Hydronic Systems:

Ducted forced air systems are less efficient than ductless fan coil units due to static pressure drop and duct thermal loss. Ducted systems require a centralized thermostat,and cannot take advantage of individual zones in each room like a ductless system. In new construction, or when adding air conditioning to a building that has no current duct system, the installed cost of a ductless system will be about the same, or less than, installing with a duct system. However, if a central ducted system is your best choice, the Chiltrix system combined with a FirstCo DC-Inverter powered VMB will be your most efficient choice. See Ducted Chiller Fan Coil Sizing Guide

About DC Inverter Fan Motor Technology

Whether it is used for a compressor, a pump, or a fan motor, DC Inverter motors are well known for being more efficient. They also run cooler, last longer, and produce a much lower sound level.

DC Inverter motors have no actual inverter in them, AC power runs through a rectifier circuit converting it to DC power. The DC power is then pulsed in varying frequencies to rotate the motor. The higher the pulse frequency, the faster the motor turns.

DC inverter motors are not only up to 20-40% more efficient at a given speed, they also provide the ability to efficiently match the motor speed to the real-time demand saving even more energy.

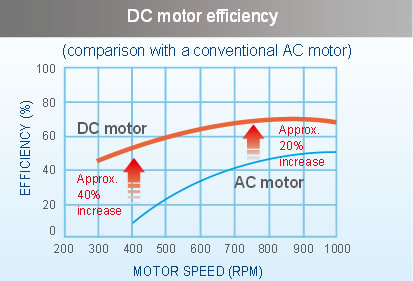

chart comparison of efficiency between DC inverter motor and AC motor


wifi logo
Optional WiFi
Fan Coil Units

Hi-Wall Mini-Split
Fan Coil Unit

high wall chiller fan coil for ductless minisplit chiller

The HW72 high-wall fan coil unit looks like a standard mini-split indoor unit. This unit is designed for a chiller, includes remote control. 208-240v 50/60 Hz AC motor.FOR EXPORT ONLY. For USA see CXI-series units below.

Ceiling Mount Fan Coil

ceiling mounted fan coil unit

Chiltrix DC-Inverter Ultra-Thin CXI series FCUs are built for universal mounting and use 120v, they can mount on the ceiling, wall, or floor. The CXI series DC-Inverter fan coil units are the quietest FCUs in the market.

Low/Mid Wall Mounted
Fan Coil Unit

wall mount chiller fan coil ultra thin

Low wall FCU above, floor mount FCU with leg kit below.

Floor - Free Standing Fan Coil Unit

floor standing chiller fan coil unit

AHU Ducted System Water Fan Coil

Standard hydronic air handlers can be with the Chiltrix chillers for ducted central HVAC systems. Various sizes and specs are available from your local HVAC supply house. Chiltrix also offers hydronic duct fan coils.

        firstco vmb hydronic air handler
Above: FirstCo DC-Inverter variable speed hydronic air handler for customers who want to use a duct system. We recommend the VMB Series (available as upflow or horizontal). See ducted hydronic air handlers here.
