CX35

CX35 Air to Water Heat Pump

Air-to-Water Heat Pump

3.4 Tons Heating
COP 4.9 SCOP 4.69
2 Tons Cooling
IPLV.IP EER 22.40
AHRI Cert Badge 550/590

Product Description

The CX35 cold climate air to water heat pump uses the same Energy Star Award-winning controls technology as CX34 and has been optimized for industry-leading heating performance, while still beating every air-to-water heat pump in the industry for cooling performance.

Ratings:

*Max Cooling Capacity and IPLV / NPLV in accordance with AHRI 550/590.
**Heating Capacity, COP, and SCOP (Seasonal Coefficient of Performance) heating in accordance with IEC EN14825 (TUV)
Rating Conditions Max Capacity
@A95 °F BTU/h		 Seasonal
Cooling COP		 IPLV/SPLV.SI
EER
*Cooling at W55.4 °F 30,757 9.26 31.59
*Cooling at W44.6 °F 24,038 6.57 22.40
*Heating
W95 °F/A47 °Fb/43 °F wb		 40,468 COP 4.9 SCOP 4.69

Key Features:

  • NEW! Dynamic Humidity Control (DHC) is now included on all units (RH sensor required)
  • Europe’s Highest Efficiency Rating! (why this matters in the US)
  • SCOP 4.69 (Seasonal Average COP) Environmentally Friendly R-32
  • Anti-Corrosion tech used to protect against salty air for extended product life (read more about anti-corrosion)

Performance Maps:

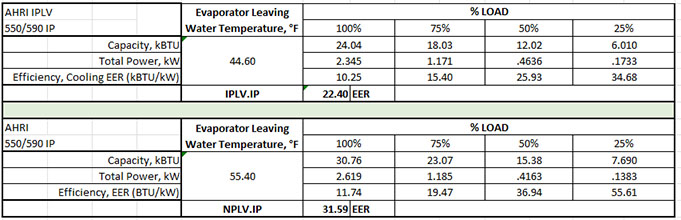

CX35 Seasonal Average Cooling EER Below
AHRI IPLV NPLV
IPLV & Performance Map per AHRI 550/590 & SCC (Canada) ISO/IEC Standard 17065 /Type 4. Below: IPLV & Performance Map per AHRI 550/590 & SCC (Canada) ISO/IEC Standard 17065 /Type 4. Below performance data has been converted from AHRI Si Certification file ChiltrixInc_ACCLCatalog_V2.320230425. to convert C to F, convert kW to BTU/h, and remove nonessential data.

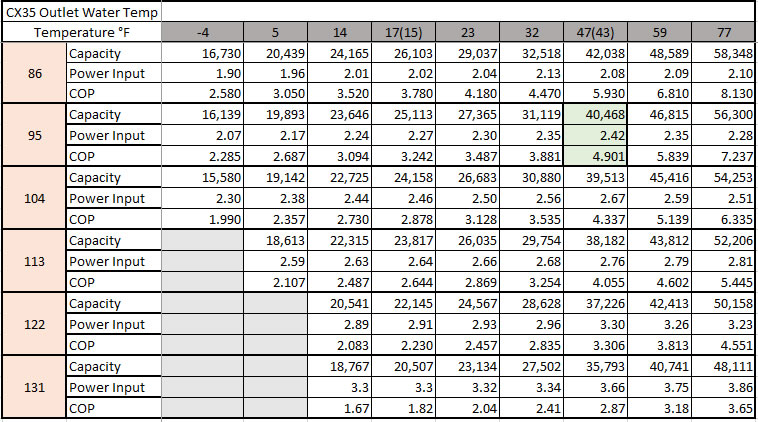

CX35 Heating Performance Map Full Speed
CX35 Heating Performance Map Full Speed

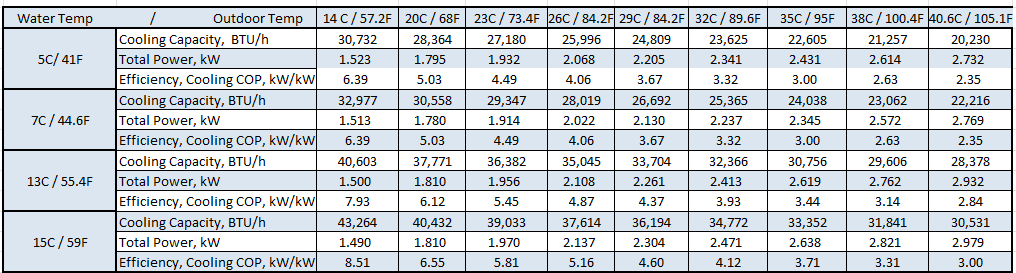

AHRI Performance Map Insert CX35
AHRI Performance Map Insert CX35

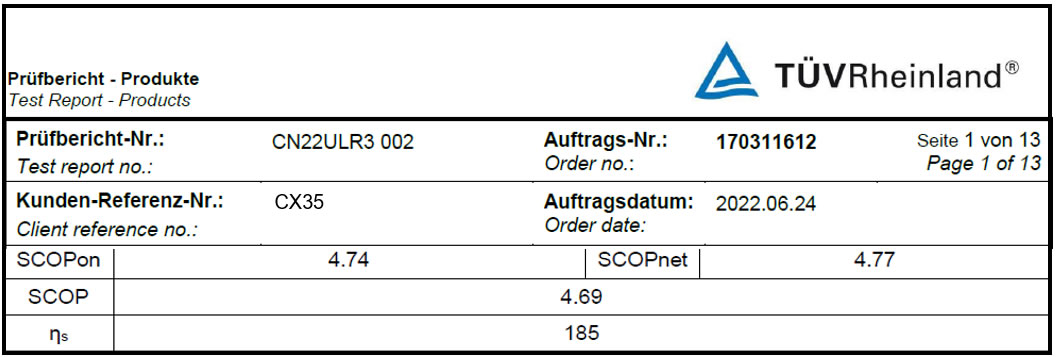

CX35 Part Load Seasonal Average COP (SCOP) COP 4.69 (Equivalent to HSPF 16)
CX35 Part Load Seasonal Average
Certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI) Certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Heating SCOP is certified by TUV Rheinland under IEC EN 14825.

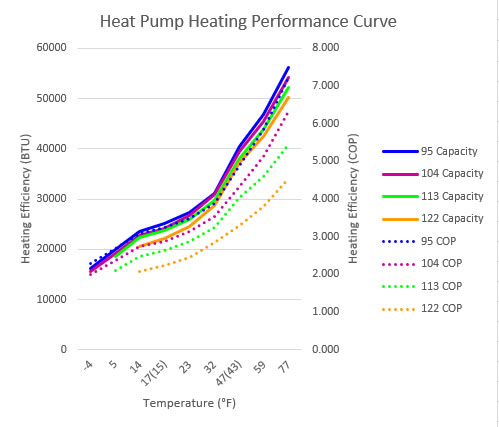

Heat Pump Heating Performance Curve
Performance Chart CX35
Chiltrix has been serving the USA Market Since 2016.

Product Documentation, Specs, and Certifications

CX35 Specifications Sheet What is IPLV? What is SCOP?

Certified #1 in Efficiency

World Record Icon

Introducing… The World’s Most Efficient Air-to-Water Heat Pumps

Maximum Flexibility:

  • Heating
  • Cooling
  • Hot Water
  • Radiant (Heating and/or Cooling)
  • Ductless Fan Coils
  • Ducted Systems
  • Mini-Duct (Concealed Ceiling)
  • Use any or all of the above together.

Ductless Room Fan Coil Units

Mount on Wall, Floor, or Ceiling. Four sizes from 1/4 to 1 ton.

High Wall FCU

Cassette FCU

For Ducted Systems:

Chiltrix is compatible with most standard hydronic air handlers and offers 4 AHUs sized up to 5 tons.

Radiant Heating

Use your Chiltrix Air To Water Heat Pump with an in-floor radiant heating (or cooling) system.

Domestic Hot Water With Air To Water Heat Pump

Let the Chiltrix unit perform your water heating and get up to 70% annual water heating savings.
