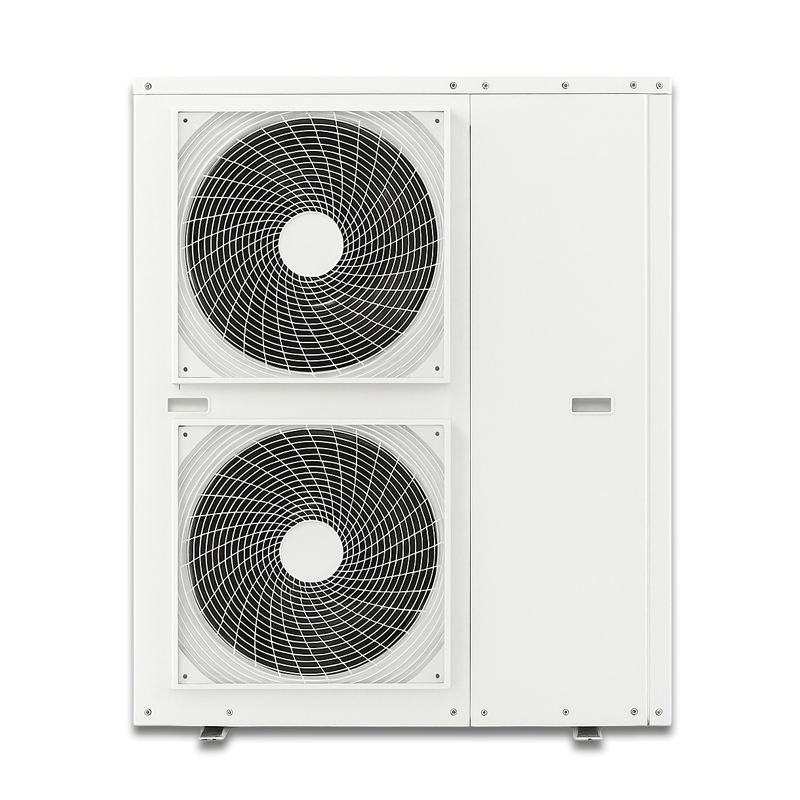

CX50 Air-to-Water Heat Pump
Air-to-Water Heat Pump
COP 4.620 SCOP 4.550
IPLV.IP EER 21.18 kBtu/h/kw
Product Description
The Chiltrix CX50 cold climate ATWHP has Europe's Highest Efficiency Rating! Why does this matter here in the USA? Why does SCOP matter in the USA?
CX50 uses the same Energy Star award-winning controls technology as CX34 and CX35. And, it has been optimized for much higher heating performance while still beating every air-to-water heat pump in the industry (except other Chiltrix models) for cooling efficiency.
Ratings:
| Rating Conditions | Max Capacity @A95 °F BTU/h |
Seasonal Cooling COP |

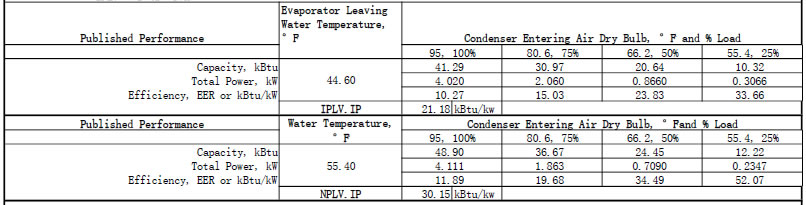

IPLV/SPLV.SI EER |
|---|---|---|---|
| *Cooling at W55.4 °F | 48.89 | 8.940 | 30.15 |
| *Cooling at W44.6 °F | 41.29 | 6.160 | 21.18 |
| *Heating W95º/A47 °F db/43ºwb |
56.98 | COP 4.620 | SCOP 4.550 |
Performance Maps:

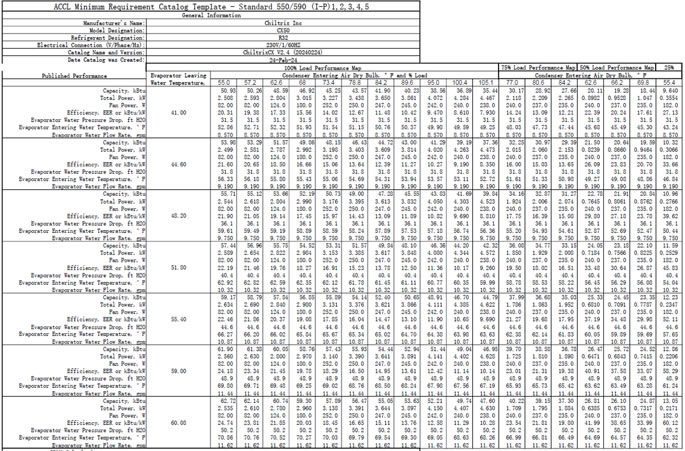

CX50 Full Cooling Performance Map

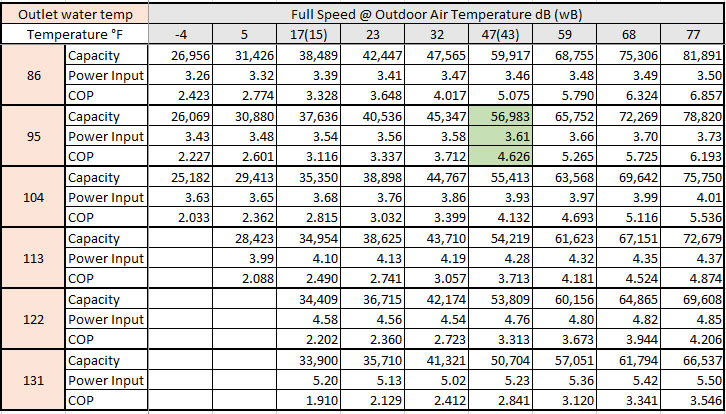

CX50 Heating Performance Map Full Speed

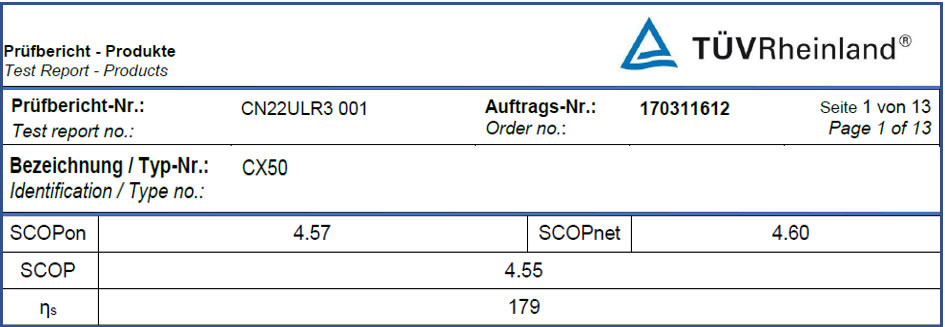

CX50 Part Load Seasonal Average COP (SCOP) COP 4.55 (Equivalent to HSPF 15.51)

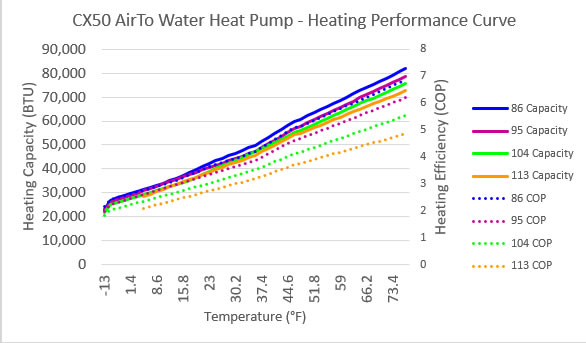

CX50 Heating Performance Curve
Product Documentation, Specs, and Certifications
CX50 Specifications Sheet
What is SCOP?Certified #1 in Efficiency
Introducing… The World’s Most Efficient Air-to-Water Heat Pumps
Maximum Flexibility:
- Heating
- Cooling
- Hot Water
- Radiant (Heating and/or Cooling)
- Ductless Fan Coils
- Ducted Systems
- Mini-Duct (Concealed Ceiling)
- Use any or all of the above together.

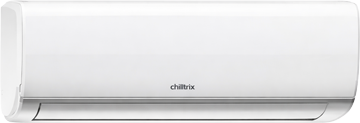

Ductless Room Fan Coil Units
Mount on Wall, Floor, or Ceiling. Four sizes from 1/4 to 1 ton.
For Ducted Systems:
Chiltrix is compatible with most standard hydronic air handlers and offers 4 AHUs sized up to 5 tons.
Radiant Heating
Use your Chiltrix Air To Water Heat Pump with an in-floor radiant heating (or cooling) system.
Domestic Hot Water With Air To Water Heat Pump
Let the Chiltrix unit perform your water heating and get up to 70% annual water heating savings.
AHRI PERFORMANCE AWARD
6 Consecutive 3-Year Awards
Rebates and Incentive Programs
